Mounted sprayers

Download the catalogue of our mounted sprayers

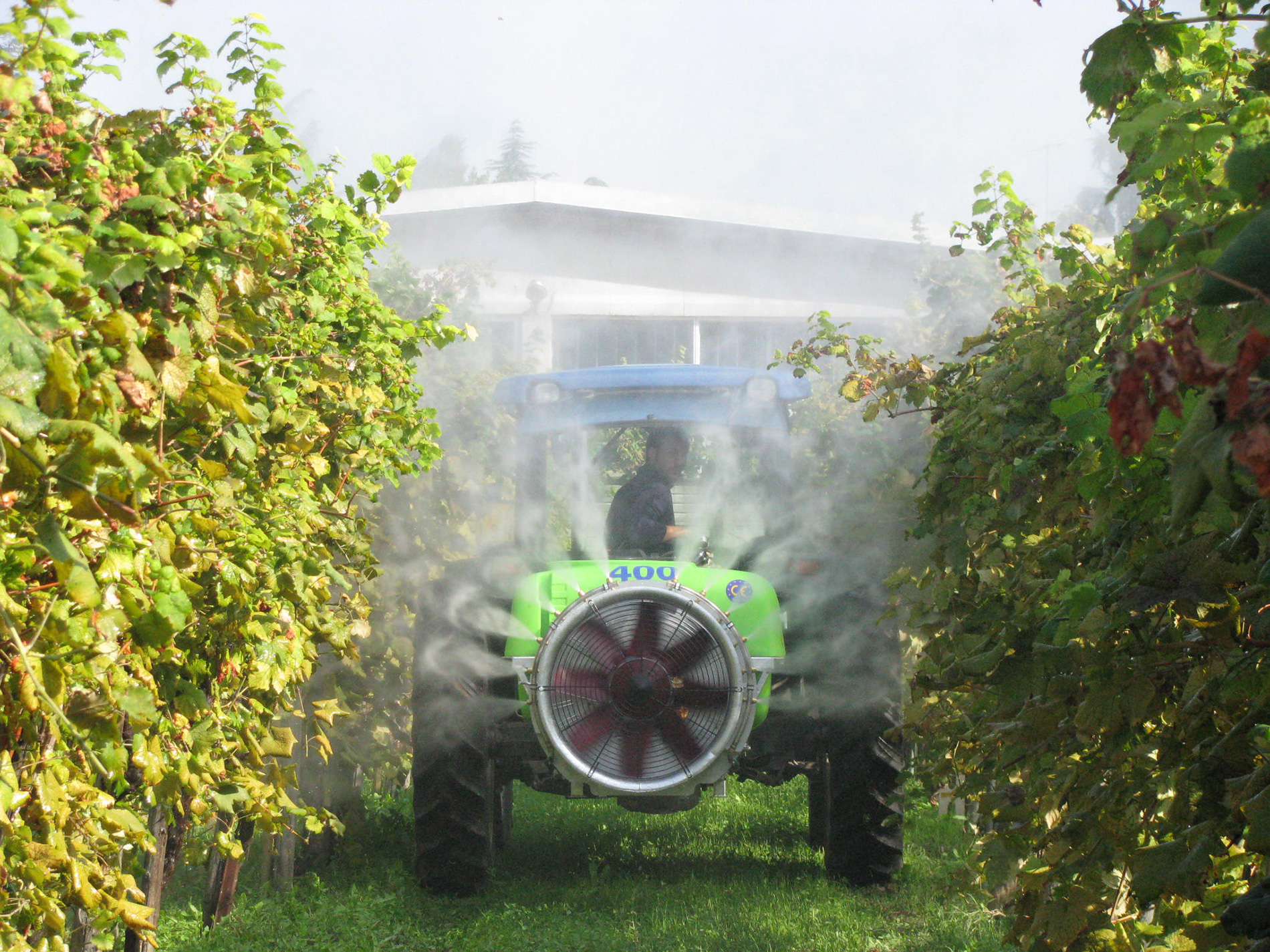

The maximum flexibility of G.R. GAMBERINI finds in the mounted orchard sprayers one of its highest expressions, thanks to the two recent innovations introduced in this category.
Revolution is the professional line with hi-tech frame and compact tank that integrates hand washing and washbasin, available in 5 capacities and numerous outfits.

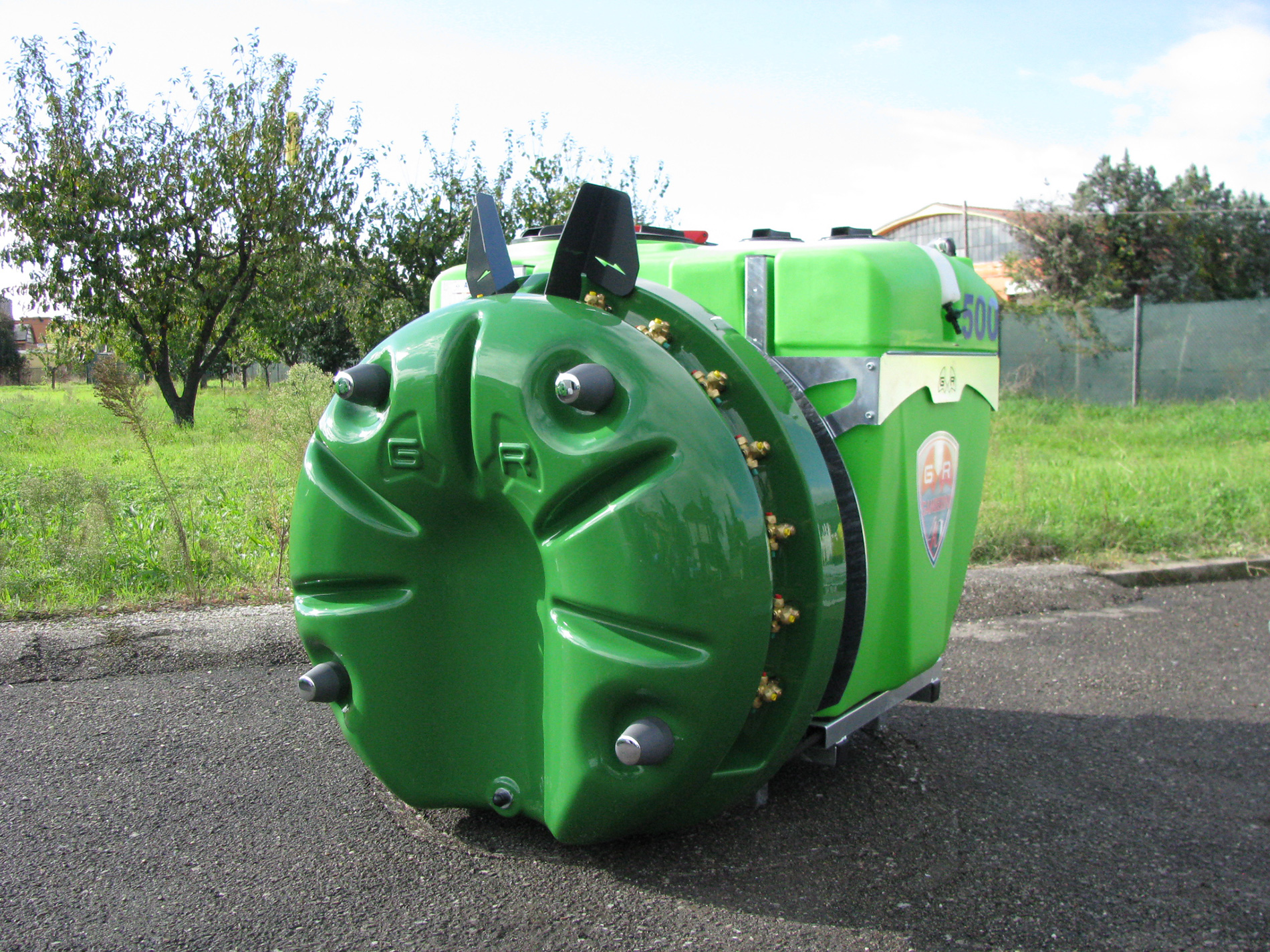

Rock is the last born in G.R. and looks like the atomizer 400 liters more compact in the market, with a total height of just 99 centimeters, a real primacy!
A wide selection of accessories, and a large variety of tank / pump / fan configurations complete the offer.
From 200 liters with fan diameter 500 for a small vineyard, up to 750 liters Revolution with a diameter of 900 for olive trees, the combinations are so much to satisfy any need for treatment of tree cultures.

Technical features

Model	Capacity (lt)	Fan (mt.)	Empty weight (kg)	L (cm)	P (cm)	H (cm)	HP
Rock	200	500 - 650 - 700 - 800	100	90	110	110	25 : 60
	300	500 - 650 - 700 - 800	110	90	110	130	25 : 60
	400	500 - 650 - 700 - 800	120	115	128	99	25 : 60
	500	500 - 650 - 700 - 800	120	115	128	110	25 : 60
	600	500 - 650 - 700 - 800	140	115	128	130	25 : 60
Revolution	400	500	150	115	128	115	25 : 40
	500	650	150	115	128	115	25 : 40
	600	700	180	115	128	130	25 : 40
	800	800	200	115	128	145	45 : 75
	1000	900	200	115	128	180	45 : 75

Trailed sprayers

Download the catalogue of our trailed sprayers

The L40 orchard sprayer is indisputably one of the G.R. production battle horses. It was also produced in limited edition L40 GOLD EDITION to celebrate the fortieth anniversary of the company, with only 100 numbered units with top-of-the-range features (ie fiberglass tank with washbasin, pump and brass handle, road homologation full load, …). The same features and customizations are available on the entire range of trolleys, from small and handy 500 l of fiberglass to up to 3200 liters of polyethylene, passing through all available intermediate capacities. We recall the possibility of requesting full-load road vehicle type approval for 600, 800 and 1000 liters L40 models with a ministerial certificate.

Technical features

Capacity (lt)	Fan (mt.)	Empty weight (kg)	L (cm)	P (cm)	H (cm)	HP
550	650-700-800-900-1000	250	90	180	100	30 : 55
600	650-700-800-900-1000	300	100	200	110	30 : 55
800	650-700-800-900-1000	320	100	220	120	30 : 55
1000	650-700-800-900-1000	350	115	240	120	30 : 55
1500	650-700-800-900-1000	400	125	270	140	40 : 90
2000	650-700-800-900-1000	450	135	290	150	40 : 90
3200	650-700-800-900-1000	500	160	320	180	40 : 90
