WEEDING SPRAYERS

Quality and technology in manufacturing

Download the catalogue of weeding sprayers

G.R. GAMBERINI’s products range is made up of 2 types of machines, mounted or trailed.

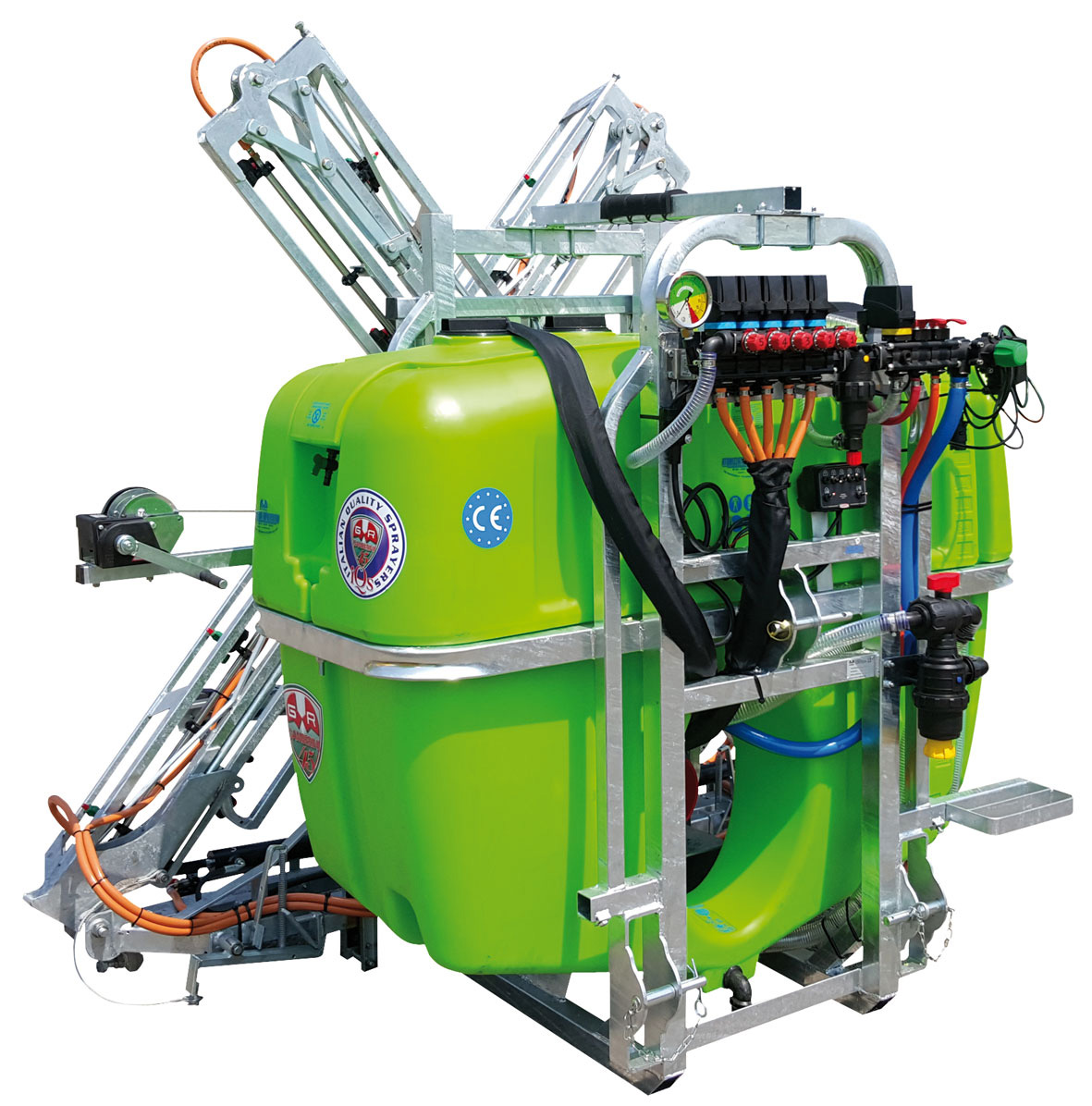

Mounted sprayers

PROFESSIONAL MOUNTED: hot galvanized bent tube frame, polyethylene tank with integrated handwash and washing-circuit, pump with patented system and blueflex® membranes, volumetric control on frame, external intake filter with self-filling valve, hydraulic mixer, rear slides, designed for mechanical or hydraulic weeding bars and other accessories for professional weeding.

APULIA MOUNTED: with the same characteristics as the Professional, but with a lightened frame and a lowered tank.

Technical features

	Liter capacity	Integrated circuit breaker	Empty weight (kg)	L (cm)	P (cm)	H (cm)	HP
Revolution	400	SI	110	115	80	115	>= 30
	500	SI	110	115	80	115	>= 30
	600	SI	125	115	80	130	>= 30
	800	SI	140	115	80	145	>= 30
	1000	SI	160	115	80	145	>= 30
Professional	800	SI	180	180	80	150	>=50
	1000	SI	200	180	80	170	>=50
	1200	SI	220	180	80	190	>= 50
Apulia New	600	SI	140	145	90	130	>=50
	800	SI	160	145	90	150	>=50

NB - Weights and measures referring to the machine only with no dumbbell bar and any options

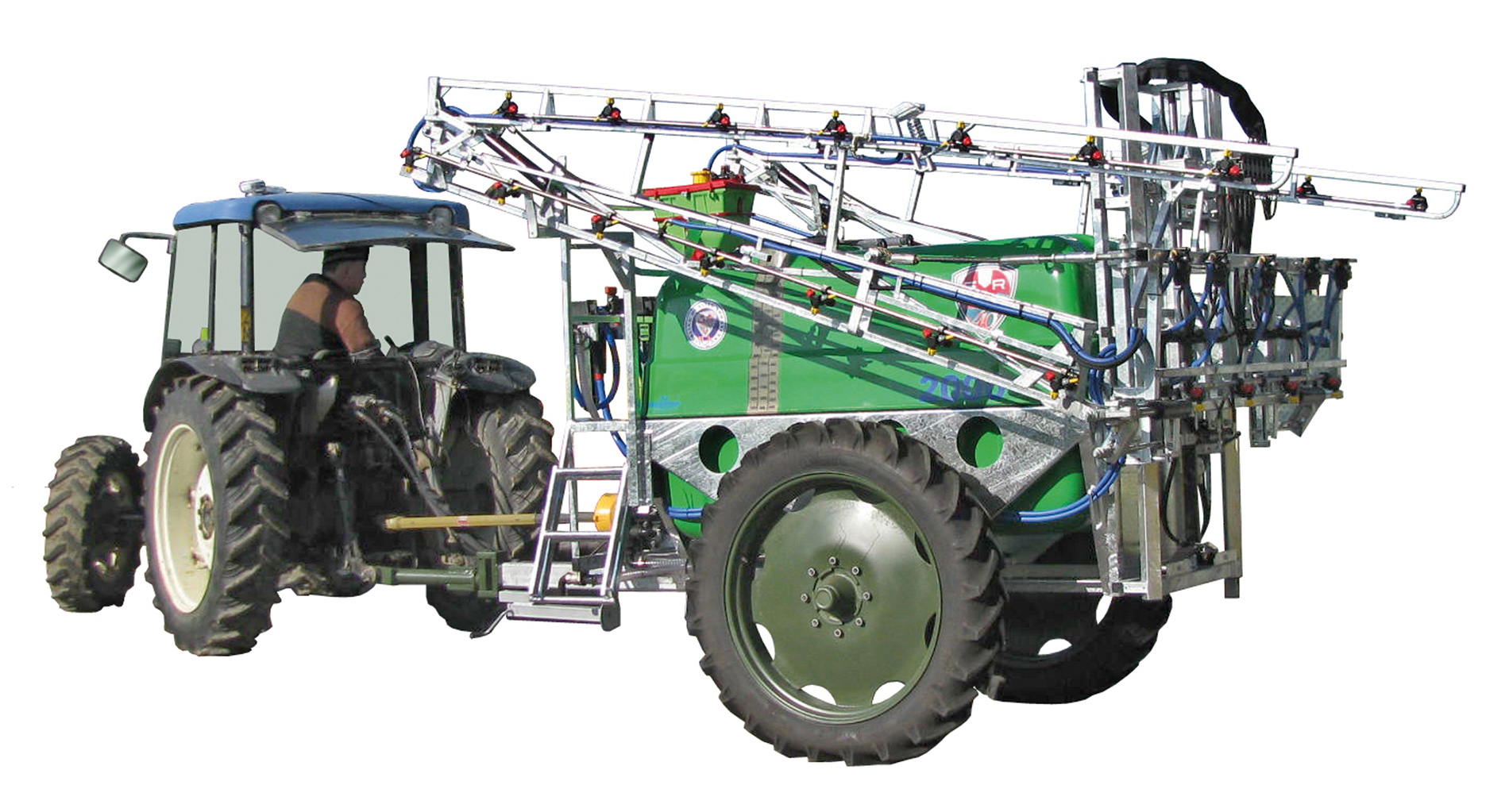

Trailed sprayers

Capacity for large extensions

MARTE & SATURNO TRAILED: Hot galvanized frame with secure side panels, fiberglass tank (Marte) or high density UVA (Saturno) rotational polyethylene with integrated wash and integrated washers, internal bulkheads and exophthalic treatment against aggression of chemical products (Marte), axle 60, 230/95-R44 wheels, steering wheel for the lift arms, designed for 16/18/21 meter hydraulic dredging bars and professional diving accessories.
